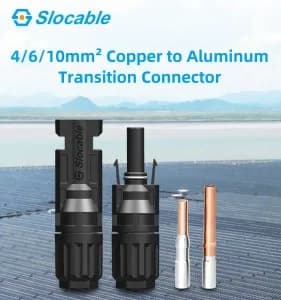

4/6/10mm² Copper-Aluminum Transition PV Connector

Name: 4/6/10mm² Copper-Aluminum Transition PV Connector
Brand: slocable

4/6/10mm² Copper-Aluminum Transition PV Connector. أبرز المواصفات — Safety class: II؛ Flame class: UL94-V0؛ Insertion force: Max. 50N؛ Withdrawal force: Min.50N.

ابقَ على تواصل عرض على موقع الشركة المصنّعة

المواصفات

البيانات الفنية

Safety class: II
Flame class: UL94-V0
Insertion force: Max. 50N
Withdrawal force: Min.50N
Ambient temperature range: -40℃~+85℃
Suitable cable cross sections: 4.0/6.0/10.0mm² AWG12/10/8
Degree of protection: IP2X/IP67
Connecting system: Crimp connection
Order No.: Part P/N
Connector: Terminal
CN40-CM02-12: Male CN40-CMMM-H-C
Female CN40-CFPM-H-C: Female CN40-CA-FT8
